ACTAtek + IoT Controller + AMS
Everything you need to deploy, configure, and get the most out of your ACTAtek Edge AI IoT access control and workforce management ecosystem.

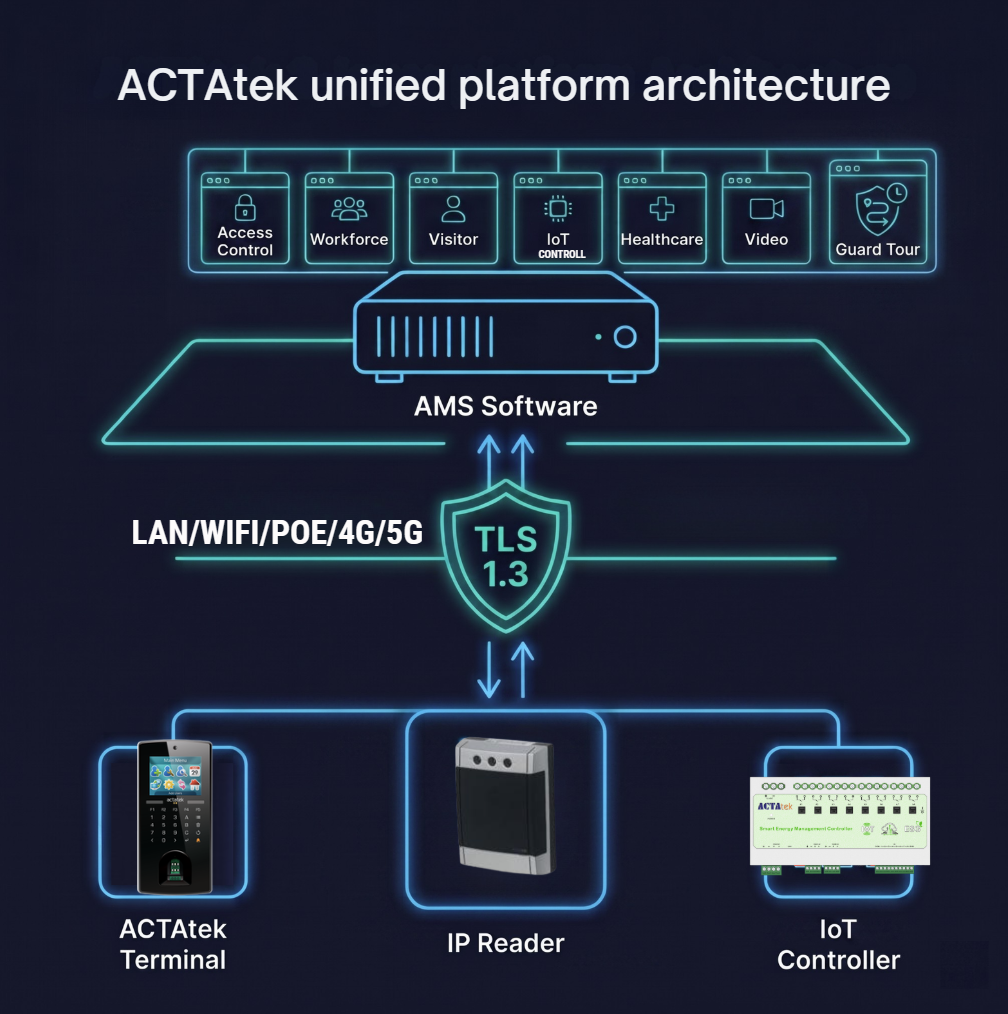

ACTAtek devices connect via TLS 1.3 encrypted network to a central AMS server — on-premise or cloud — giving you real-time control over access, people, and building systems from a single interface.
AMS scales from a single site to hundreds of locations worldwide. All devices sync in real-time regardless of geography — via VPN, DDNS, or direct internet connectivity.
Plug-and-play biometric terminals, smart card readers, and industrial IoT controllers built for 24/7 operation.

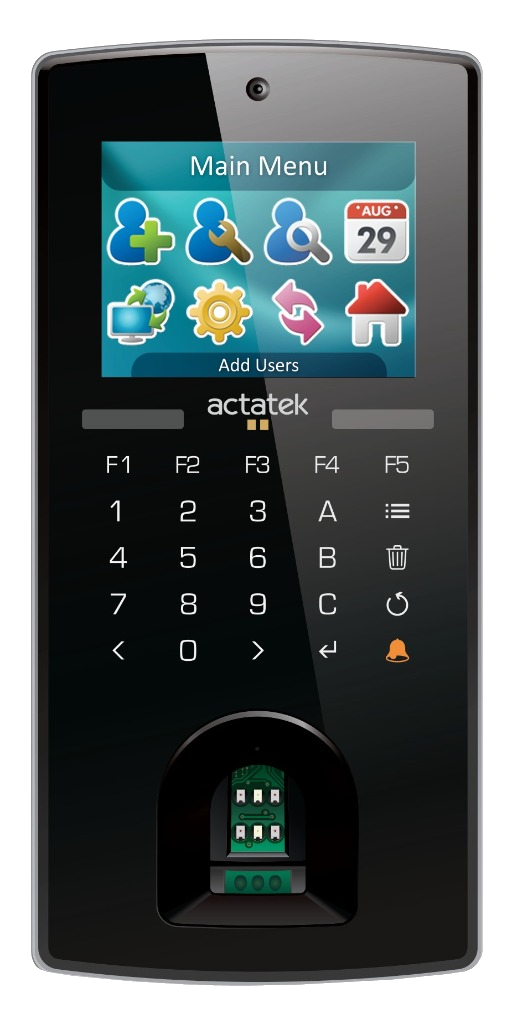

An all-in-one biometric access control device with built-in web server, supporting fingerprint, facial recognition, RFID, QR code, Google OTP, and PIN. Scales from 1K to 500K users with 1 million event logs.

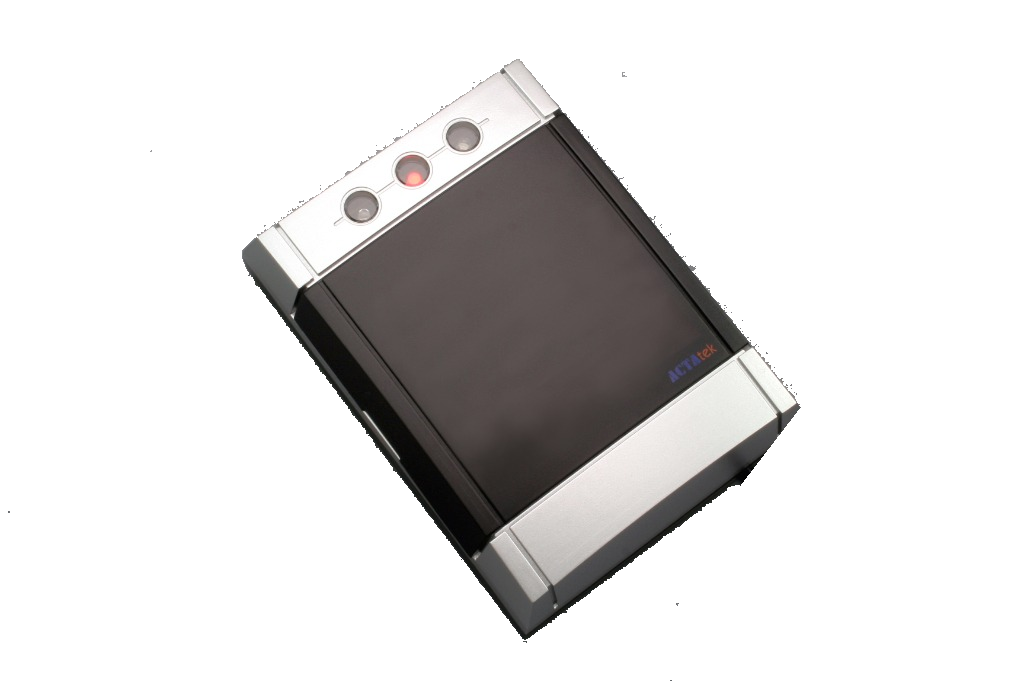

Compact IP-based smart card reader. Supports RFID (13.56MHz & 125KHz), PoE-powered, IP65 rated. Communicates via TCP/IP with no additional software needed for enrollment.

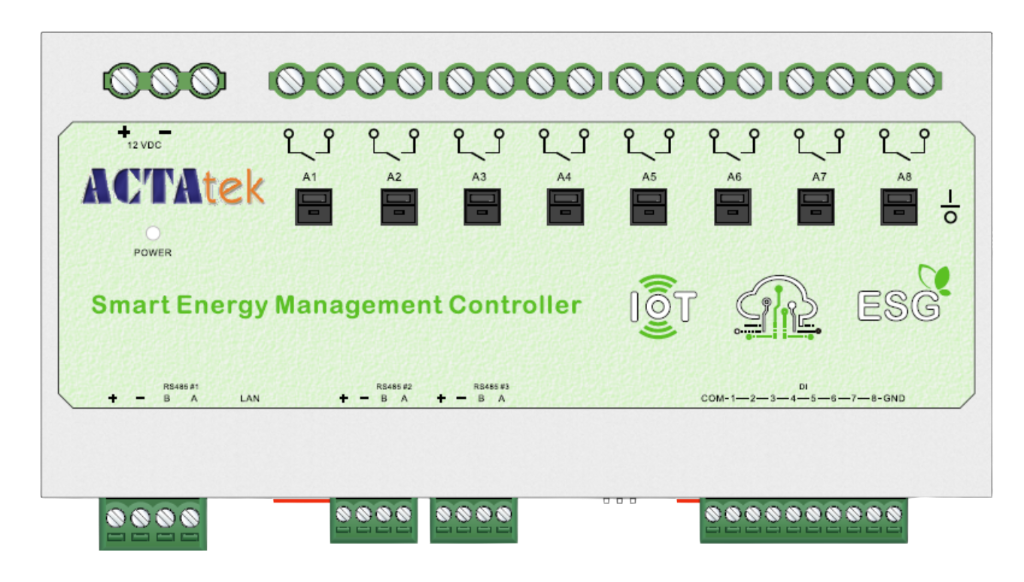

Industrial-grade smart energy management controller. 8 relay circuits up to 277VAC/50A. Edge computing ensures operation even during network outages.

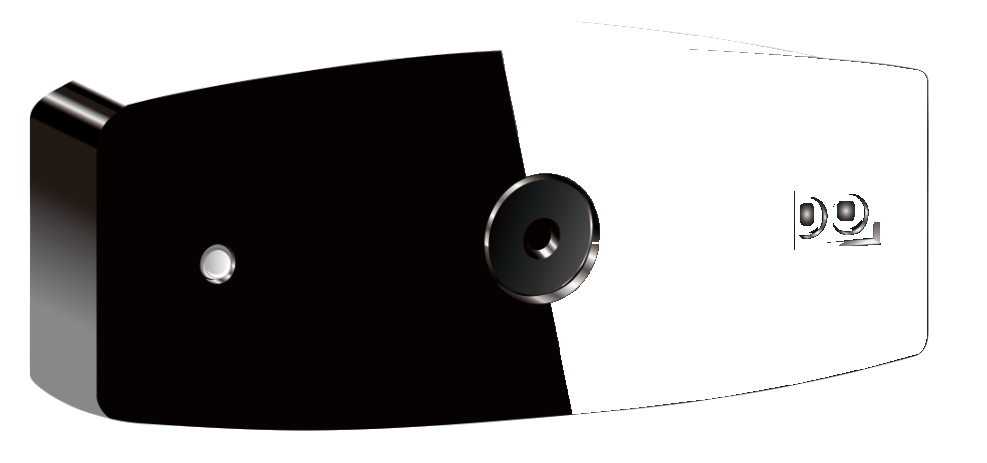

Medical-grade contactless infrared body thermometer. Integrates with ACTAtek terminal via RS232/RS485 for automated health screening at entry points.

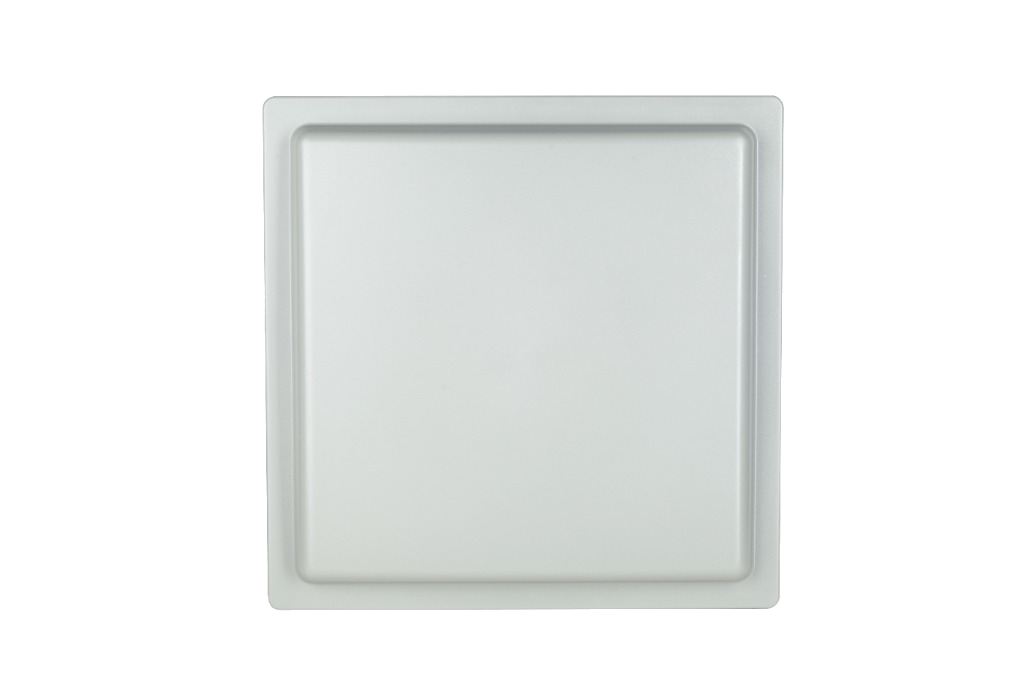

Long-range vehicle and asset RFID reader. Reads ISO18000-6C / EPC Class1 Gen2 tags up to 12 meters. Integrates via RS485 with ACTAtek for car park management.
A unified central management platform for access control, workforce management, visitor management, IoT control, healthcare, and video surveillance — available on-premises or as SaaS.
Centralized platform for single customers. Full local control, real-time monitoring, and secure on-site data management. Ideal for high-security environments.
Cloud-based multi-tenant version for managing multiple entities. Remote access, minimal IT maintenance. Pre-configured domain per customer.
Individual & group access rights, anti-passback, crowd capacity control, remote door management, and offline alerts.
Time attendance, multi-shift scheduling, job costing, remote clock-in/out, overtime reports, mobile app, and geo-fencing.

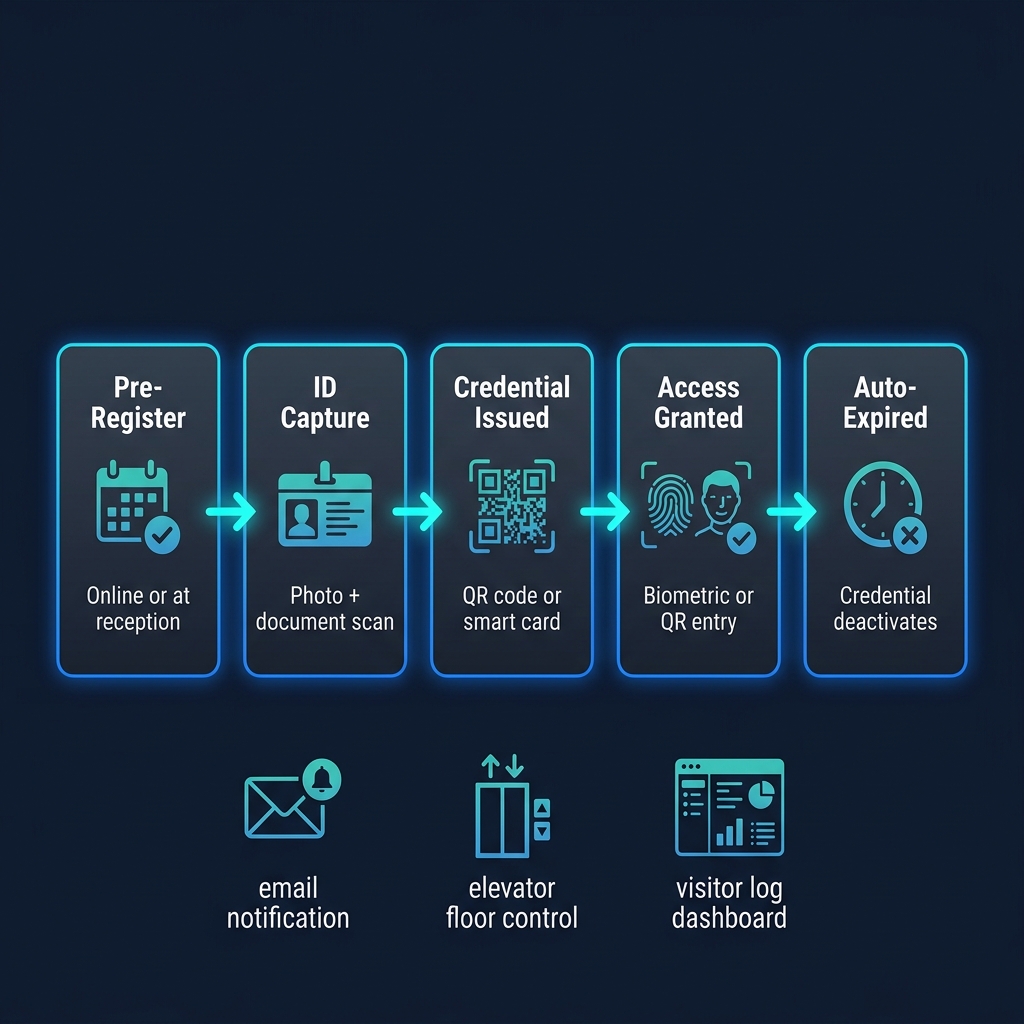

Pre-registration, ID capture, photo verification, QR code/smartcard issuance, automatic credential expiration, and full visitor logs.

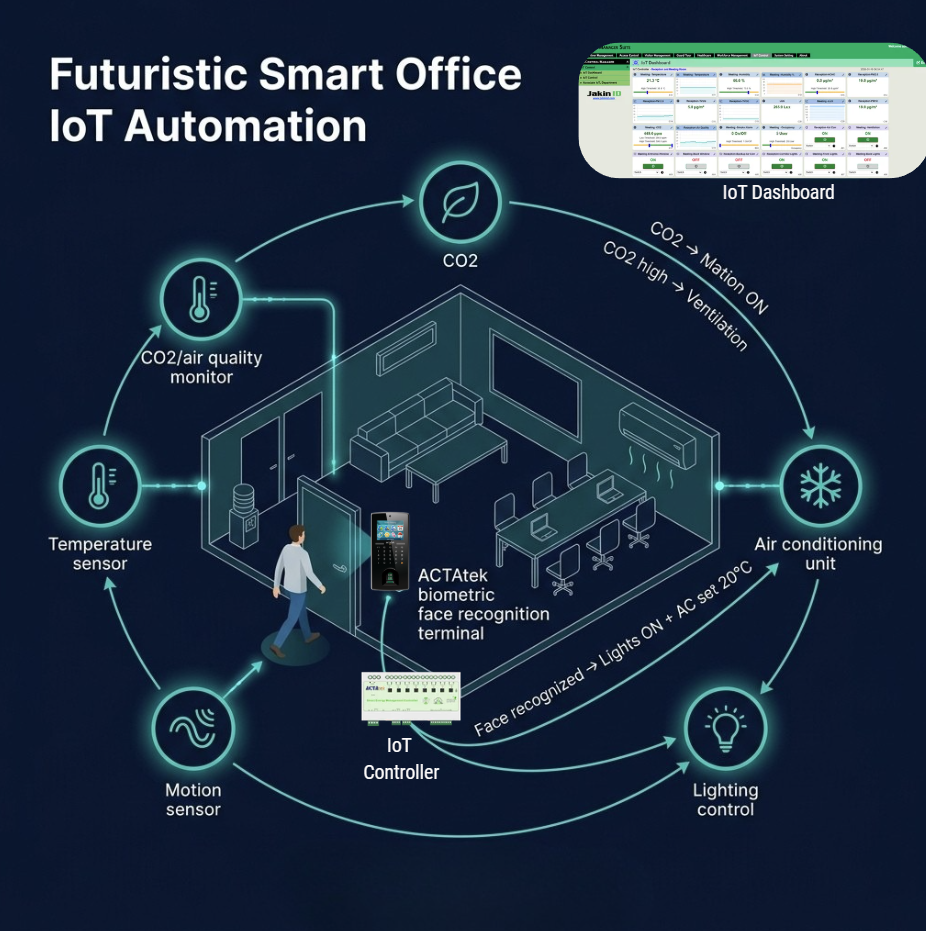

Manage sensors and appliances (AC, lighting, HVAC) via RS485 IoT controllers. Auto-adjust based on occupancy and environmental data.
Body temperature screening, contact tracing, crowd capacity control, risk assessments, and air quality monitoring for workplace health.
RTSP live streaming from built-in cameras, event-triggered recording, searchable logs, and VMS integration with centralized management.
Schedule patrol routes, monitor guards in real-time, generate performance reports. Supports RFID, QR, PIN, and biometric checkpoints.
Fire roll calls, crowd capacity alerts, hazard detection (smoke, CO2, LPG), emergency door control, and evacuation reporting.
The ACTAtek unified platform addresses real-world operational challenges across multiple industries and building types.

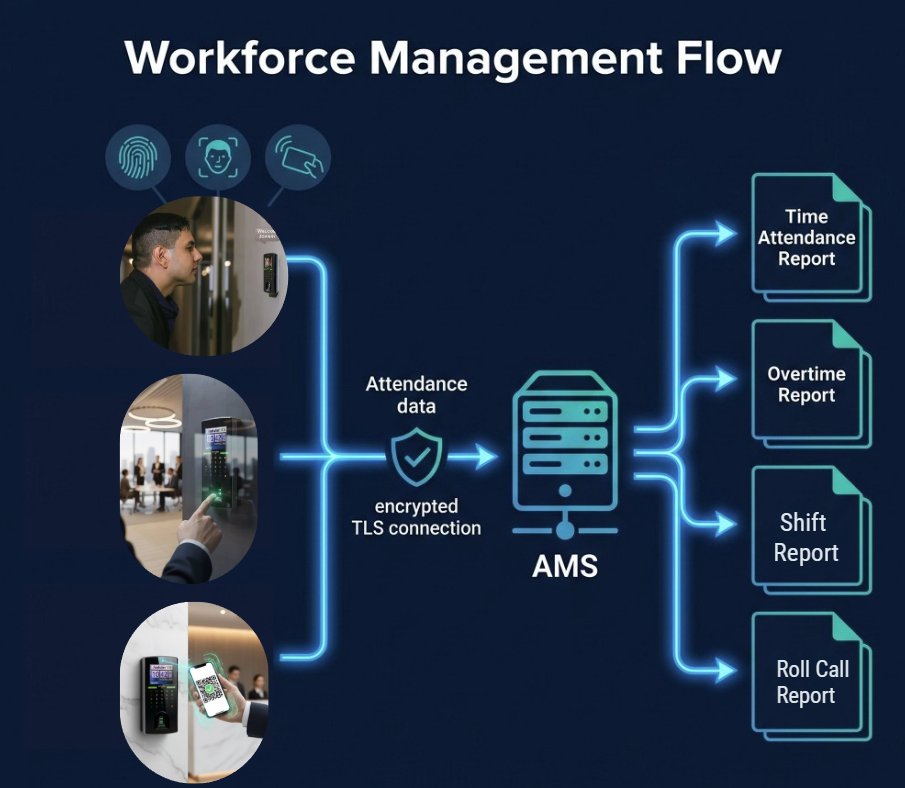

Automate and streamline all HR and attendance operations with ACTAtek's unified system.
Multi-layer physical security with intelligent credential management and real-time surveillance.
End-to-end visitor lifecycle management from pre-registration to secure departure.
Comprehensive infection control and health monitoring tools integrated directly into access control.
IoT-driven environmental control that reduces energy waste, supports ESG goals, and enhances occupant comfort.
Step-by-step guidance for hardware mounting, wiring configurations, and system setup.

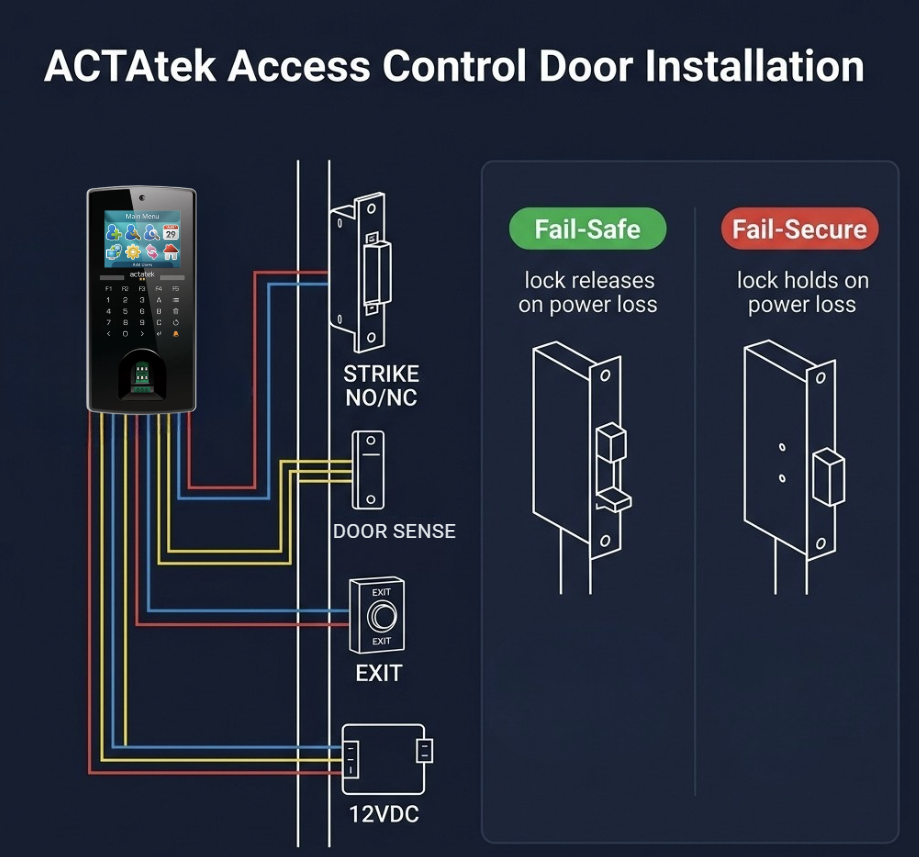

The diagram above shows how the ACTAtek terminal connects to door strikes and sensors. Always use a dedicated 12VDC power supply separate from the door lock, and install a diode to prevent back-EMF damage.
| Port | Function |
|---|---|
| DC OUT | 12V/1A for door strike or external I/O board (PoE+ compatible) |
| ALARM | Tamper alert + scheduled bell; short circuit on case open |
| DOOR SW | Door Switch 1 input |
| RS232 | Debug port or external I/O board connection |
| RS485 | Wiegand output — 26-bit on request |
| DOOR BELL | Doorbell trigger from front panel or web interface |
| COM PORT | External barcode or magnetic stripe reader |
| STRIKE | Door strike — NO (open by default), NC (closed by default) |
Up to 11 ACTAtek devices — designate one as Master, rest as Clients. Data syncs automatically (users, fingerprints, event logs). Connect third-party software via SOAP/REST API, Agent, or Google Drive.
UHF reader detects vehicle tags up to 12m away. Combine with ACTAtek terminal for multi-factor vehicle + person authentication at a single gate point.

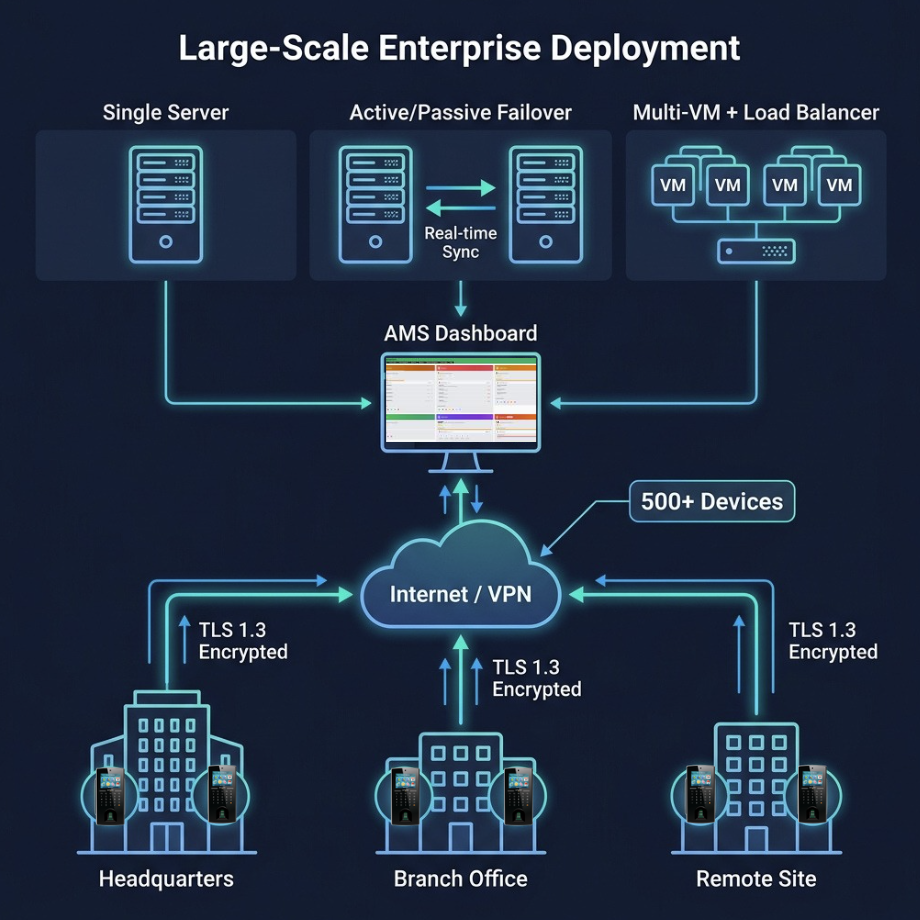

For enterprise deployments, AMS scales across thousands of devices. Tested with 585+ ACTAtek devices in a single AMS instance.
ACTAtek and AMS are built security-first, with hardened Linux, TLS 1.3 encryption, and regular VAPT reporting.
All communication between ACTAtek devices and AMS/AMS SaaS uses TLS 1.3 with 256-bit encryption — the same standard used in banking applications. Ensures data integrity and confidentiality during transmission.
Customized secure Linux environment that resists rooting attacks. Mitigates known vulnerabilities like Apache Log4j. Cannot be compromised the way open Android devices can.
Regular Vulnerability Assessment & Penetration Testing. AMS provides VAPT reports to identify and mitigate risks proactively. IP whitelist access controls available per device.
Configurable HTTPS ports, SSL/TLS protocol selection, IP range restrictions, SNMP compliance. Supports VPN, Port Forwarding, and DDNS for secure remote connectivity.
Fingerprint templates encrypted with AES-256-bit — same standard used in FinTech banking. FRR 0.01%, FAR 0.0001% accuracy. ISO 19794-2, MINEX III PIV Level 2, FBI Certified WSQ compliant.
Regular firmware updates address emerging threats. Online maintenance and upgrades — no on-site service required. 10-year minimum product lifecycle with continued support.
Connect ACTAtek with your existing IT ecosystem using well-documented SOAP and REST APIs.
SOAP-based interface for structured data exchange. Access the WSDL at:
http://[AMS Server IP]/AccessWebAPI/AccessManagerWebAPI.asmx
REST API for real-time device-level operations including remote door open/close and event log retrieval.
| Field | Description | Usage |
|---|---|---|
ID | Unique log identifier | Tracking unique attendance events |
EventID | IN / OUT or custom event types | Mapping to clock-in/out activities |
UserID | Unique user identifier | Sync with 3rd-party employee IDs |
TimeStampLocal | Localized timestamp | Regional labor law compliance |
AccessMethod | Biometric (FP/Face) or RFID | Detailed audit trails |
PhotoBuffer | Image of access event | Enhanced security review (optional) |
TerminalID | Device MAC / identifier | Multi-site tracking |
Extend the ACTAtek ecosystem to your smartphone. Real-time access control, workforce management, and security monitoring on iOS and Android.
Open and manage doors remotely directly from the app.
Clock in/out with geofence enforcement and GPS validation.
Receive real-time push alerts for security events and access violations.
Location-based boundaries ensure workforce activity is within approved zones.
